Continuous Horizontal Belt Filter with Variable Speed Drive Counter Current Wash Vacuum Pump
Product Description:
Horizontal Vacuum Belt Filter(HVBF)is a kind of hi-efficiency solid-liquid separation equipment. With the supporting of vacuum box, the rubber belt is slipping on the vacuum box, which a sealing movement structure is formed between vacuum box and belt. The solid-liquid separation is achieved by a negative vacuum pressure.
One of the key features of the Horizontal Belt Filter is its Continuous Operation, which ensures that the filtration process is uninterrupted and efficient.
The filtrate section is along the horizontal direction of the horizontal vacuum belt filter, it can continuously achieves a serious technical processes of filtration, cake washing, discharging, filter washing, etc.. The mother liquid and cake washing liquid can be collected by different cavities.
It has an advantages of high filtration efficiency, big capacity, good washing efficiency, low cake moisture, flexible operation, easy maintenance, etc.

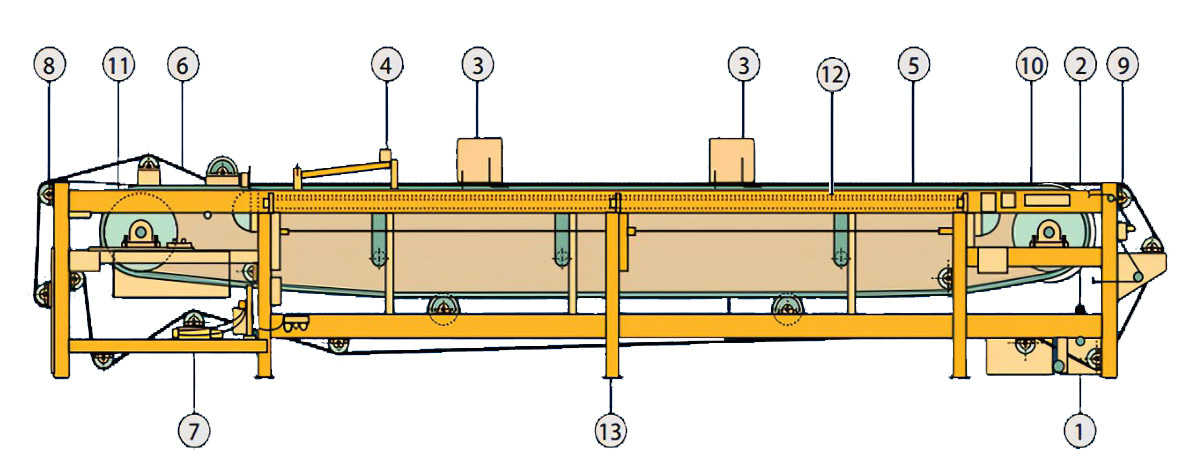

Structure of Horizontal Belt Filter
| 1 | Filter Cloth Washing | 8 | Filter Cloth Tension Unit |
| 2 | Belt Washing | 9 | Discharge Roll |
| 3 | Cake Washing Box | 10 | Drive Pulley |
| 4 | Slurry Feeding Hopper | 11 | Driven Pulley |
| 5 | Rubber Belt | 12 | Vacuum Box |
| 6 | Filter Cloth | 13 | Filter Support Frame |
| 7 | Filter Cloth Tracking Unit | | |
Outline Dimension and Techncial Parameter
Dimension of Vacuum Belt Filter
Techncial Parameter
Main Equipment Description
| Vacuum Box Lfting Device | Vacuum box is assembled by sections, each section is connected with filtrate pipe to form a vacuum filtrate collecting system. With a lifting device of vacuum box, it is more convenience for wear belt replacement. |
| Tracking Device | Adopt cylinder or bellows to adjust the tracking of cloth automatically by switching the tracking angles. It can ensure the normal operation of cloth. |
| Tension Unit | By adjusting the tension of rubber belt to ensure the friction force of belt and no tracking happened. |
| Washing Device | Adopt countercurrent and concurrent spraying devices, which can switch to concurrent washing and countercurrent washing according to differently slurries and process requirement, which can washing the materials more completely. |
