Product Description:
The Horizontal Vacuum Belt Filter is a reliable and efficient solution for solid-liquid separation processes. Its continuous belt vacuum filter design, counter-current wash system, vacuum pump, and robust construction materials make it a versatile and long-lasting option for a variety of applications.

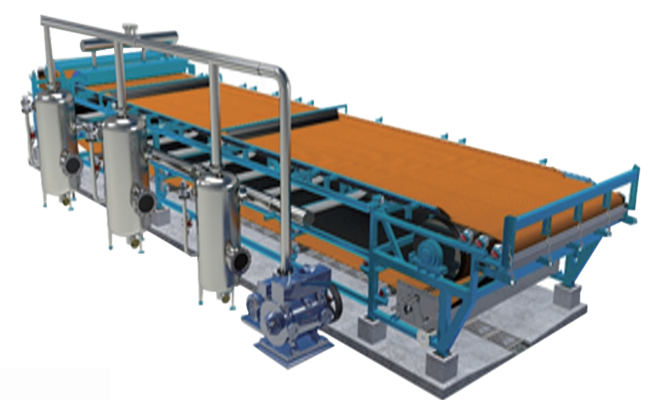

Horizontal Vacuum Belt Filter(HVBF)is a kind of hi-efficiency solid-liquid separation equipment. With the supporting of vacuum box, the rubber belt is slipping on the vacuum box, which a sealing movement structure is formed between vacuum box and belt. The solid-liquid separation is achieved by a negative vacuum pressure.
Features:
- Automatic operation process from slurry feeding, filtering, cake washing, cake drying, cake discharging, cloth washing.
- The mother solution and cake washed liquid can be collected separately in filtration tank.
- The remote and local control can be exchanged flexiblely.
- Adjust the belt speed in a certain range, and cake thickness to achieve the economic efficient, based on the filtration slurry.
- The whole filter use frame module design, which is very convenient for transportation, installation and maintenance of equipment.
- Choose high pressure water for cloth washing to increase the cloth regenerative effect and extend the life span.
- Automatic discharge, high level discharge and auxiliary discharge for filtration.
Technical Parameters:
| Control System | PLC Or DCS |
| Filtration Area | 10-1000 M2 |
| Drive System | Variable Speed Drive |
| Application | Solid-Liquid Separation |
| Filter Cake Wash | Counter-Current Wash |
| Type | Continuous Vacuum Filter |
| Filter Cake Discharge | Scraper Or Belt Press |
| Material Of Construction | Stainless Steel Or Carbon Steel |
| Operation | Continuous |
| Vacuum Source | Vacuum Pump |
This table lists the technical parameters of a Horizontal Belt Dehydrator, which is used for Solid-Liquid Separation.
Packing and Shipping:
Product Packaging:
The Horizontal Belt Filter product will be securely packaged in a sturdy cardboard box with ample padding to prevent any damage during shipment. The product will be sealed in a plastic bag to protect it from moisture and dust. The box will be labeled with the product name, model number, and any other necessary information.
Shipping:
The Horizontal Belt Filter product will be shipped via a reputable courier service to ensure timely and efficient delivery.
FAQ:
What is the brand name of this product?
UNIVEE
What is the model number of this product?
U-HVBF
Where is this product manufactured?
China
What is the capacity of this Horizontal Belt Filter?
The capacity of the U-HVBF varies depending on the specific model. Please refer to the product specifications for more information.
What type of industries can this product be used in?
The U-HVBF can be used in a variety of industries including mining, chemical processing, and wastewater treatment.
